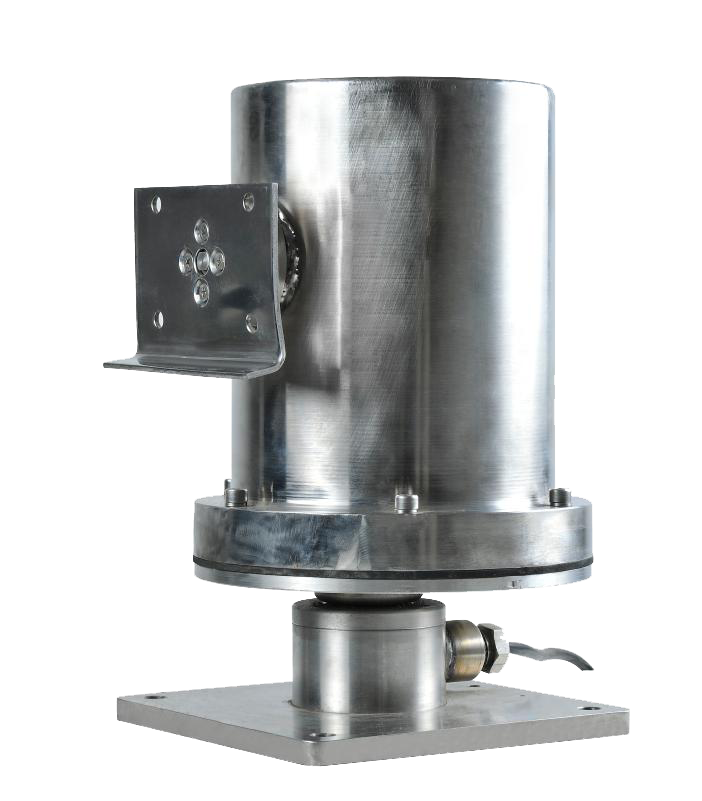

DIPY-A are designed to operate in industrial environments such as power plants, oil refineries ,steel mills, petrochemical plants, food processing facilities, ships yards, paper mills , mining operations and construction sites. It can be installed in hazardous locations which belonging to combustible dust A21 area.It is designed and manufactured according to explosion-proof standards GB3836.1-2010,GB12476.1-2013,applications television equipment safety requirements GB14861-83 and SJ2465-84.

CERTIFICATE

Ex-marking : DIP A21 TA，T6

MECHANICAL

Material :Stainless steel 304 or 316L

Protection grade: IP66

Pan: 360° continuous pan rotation

Tilt: +90° ~ -90°

Pan speed :0.1°/S ~ 30°/S

Tilt speed :0.1°/S ~ 30°/S

Unit weight :15Kg

Ship weight :18Kg

Max load 25kg

Mounting :Fixed bracket、base、pole

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature -:40℃~+60℃

Humidity: 95%RH(+25℃)

ELECTRICAL

Input voltage :AC220V±10%, 50/60Hz，AC24V

Current： ＜4A

Power About： 30W

Communication ：RS-485

Communication rate： Multi-, to be set

Protocol ：Multi-, to be set

Preset ：128

Preset accuracy ≤ 0.3°

Auto-heat (optional) ：Work while it is -10℃

Connection ：

       5-core for control
