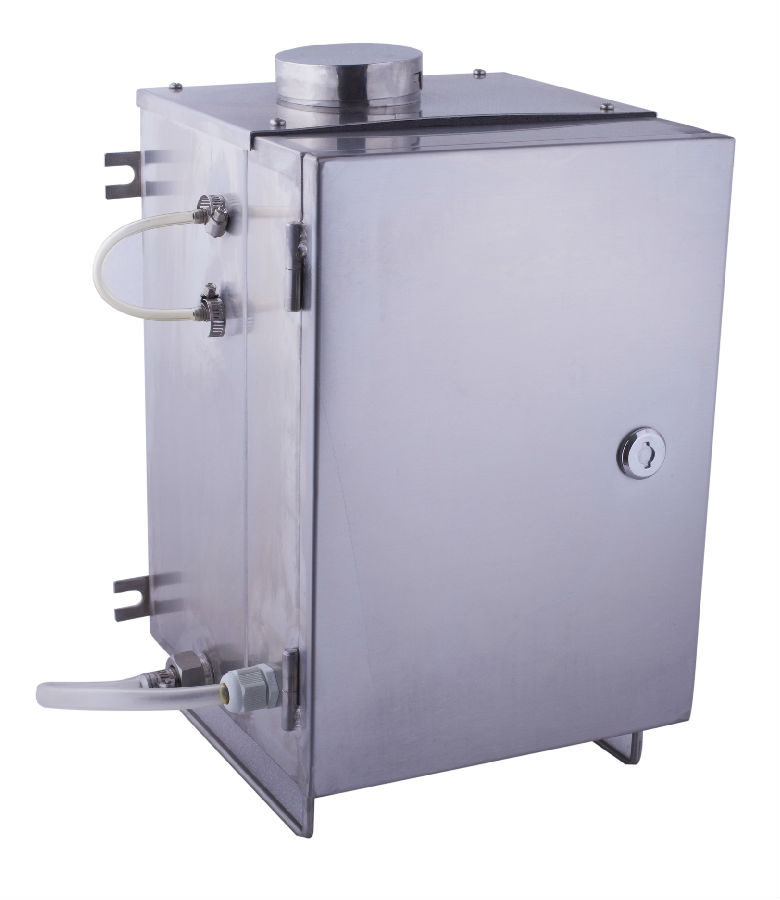

FZ-D-A as new ex-proof monitoring equipment, with advanced technique and matured quality as its base, has been a successful product in market in the area of explosive and flammable for monitoring. The wash/wipe units will be provided for for cleaning camera windows,The washing and wiping control command shall come from keyboard controllers located at control rooms at operator’s request. It can be installed in hazardous locations which belonging to ExdIICT6 and combustible dust A21 area.It is designed and manufactured according to explosion-proof standards GB3836.1-2010, GB3836.2-2010, GB12476.1-2013,GB12476.5－2013, JB/T9536-1999 ,applications television equipment safety requirements GB14861-1993 and SJ2465-84.

Be made of stainless steel, could be with fixed or PTZ camera.

Voltage supply DC12V

1 cable outlets with ex-proof tube or armored cable for connection.

Low temperature auto-heating function optional,With auto-heat to keep equipment working under -40℃ to +60℃ long-time stably.

Easy installation and maintenance, fixed brackets, base for mounting.

CERTIFICATE

Ex-marking : ExdIICT6 Gb

ELECTRICAL

Input voltage :DC12V

Current： ＜1A

Auto-heat (optional) ：Work while it is -10℃

Power About： 20W

Connection ：2-core for power

MECHANICAL

Material :Stainless steel 304 or 316L

Protection grade: IP66

Screw type:1-G1/2”

Unit weight :10Kg

Ship weight :12Kg

Mounting :Fixed bracket、base

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature -:40℃~+60℃

Humidity: 95%RH(+25℃)
