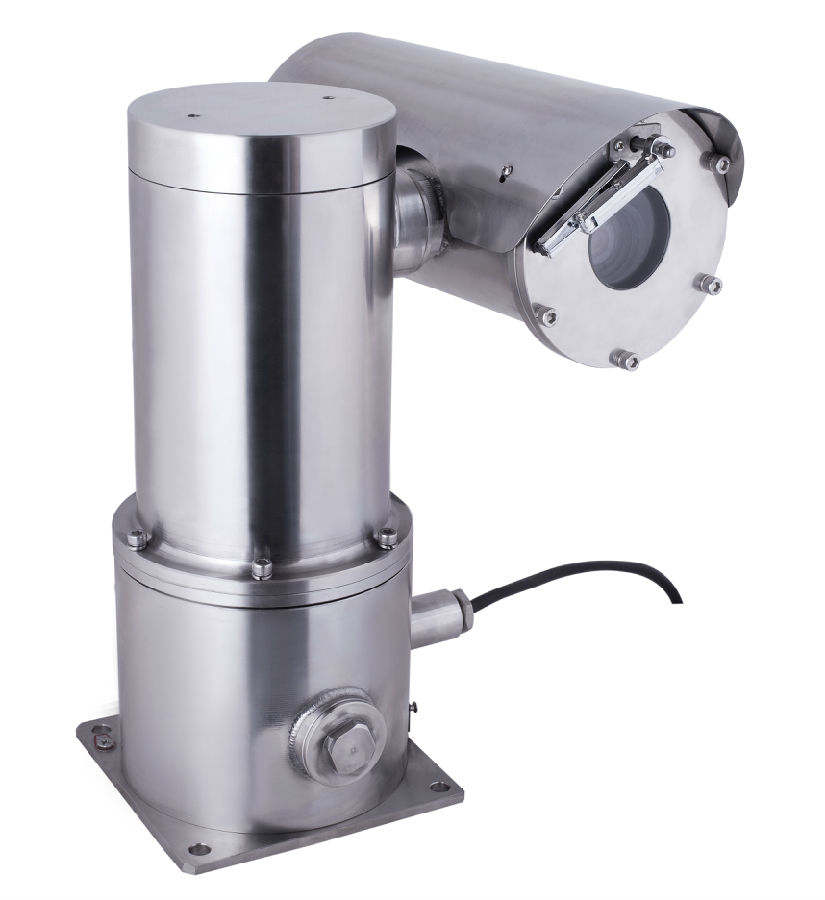

DIPZ-A as new ex-proof monitoring equipment, with advanced technique and matured quality as its base, has been a successful product in market in the area of explosive and flammable for monitoring. It can be installed in hazardous locations which belonging to combustible dust A21 area.It is designed and manufactured according to explosion-proof standards GB3836.1-2010,GB12476.1-2013,applications television equipment safety requirements GB14861-83 and SJ2465-84.

FEATURES

Ex-proof Integrated Camera obtained two national patents, No. ZL 2007 2 0074157.4 and ZL 2006 3 0039146.3;

Be made of stainless steel, it can ensure that the entire device is resistant to corrosion;

Integrated structure design, with no cable between pan/tilt and camera, turning at both pan/tilt and all direction.

Integrated with colour camera, all direction pan/tilt, and decoders inside, multiple communication protocol to response different orders.

The camera position can be adjusted, The  power supply of camera can be choose between in AC220V / AC24V /DC 12V;

HD network cameras and analog cameras can be installed

Support network transmission and video coaxial transmission

With wiper and sunshield, wash and water tank, auto-heat optional. With auto-heat to keep equipment working under -40℃ to +60℃ long-time stably.

Easy installation and maintenance, fixed brackets, base, pole or lattice tower for mounting.

CERTIFICATE

Ex-marking : DIP A21 TA，T6

MECHANICAL

Material :Stainless steel 304 or 316L

Protection grade: IP68

Pan: 360° continuous pan rotation

Tilt: +90° ~ -90°

Pan speed :0.1°/S ~ 30°/S

Tilt speed :0.1°/S ~ 30°/S

Unit weight :25Kg

Ship weight :28Kg

Mounting :Fixed bracket、base、pole

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature -:40℃~+60℃

Humidity: 95%RH(+25℃)

ELECTRICAL

Input voltage :AC220V±10%, 50/60Hz，AC24V

Current： ＜4A

Power About： 70W

Communication ：RS-485

Communication rate： Multi-, to be set

Protocol ：Multi-, to be set

Preset ：128

Preset accuracy ≤ 0.3°

Auto-heat (optional) ：Work while it is -10℃

Infrared(optional):Infrared LED or laser,distance:100 M（laser :250M）

Connection ：

       3-core for power

       2-core non-shielded for control

       Coaxial cable for video output

HD network cameras connection ：

       3-core for power

       UTP5E

CAMERA SPECIFICATION (Typical)

Brand ：Panasonic

Signal System:PAL/NTFS

Image sensor： 1/4″ CCD

Horizontal resolution ：650TV Lines

Effective pixels Resolution: 976(H)x582(V)

H/V scan frequency 15.625KHz / 50Hz

Shutter Time:：1/50-1/10,000s

Maximum sensitivity 0.001Lux（Color）/ 0.00008Lux（Black）

SNR :52dB

WDR: 160X(54dB)

View angle :2.23˚~60.15˚

Zoom:27x Optical / 20x Digital f=3.3~88.98mm

Auto focus / F1.4~22,

Video output Composite, 1.0Vp-p, 75Ω, BNC

HD network cameras SPECIFICATION (Typical)

Brand ：HIKVISION

Image sensor：1/2.8"CMOS

Signal System：PAL/NTSC

Maximum sensitivity ：Color：0.05Lux Black：0.01Lux

Day& Night:：ICR

Shutter Time：1/1s ~ 1/30,000s

Effective pixels Resolution：1920x1080

Focal Length：4.7-94mm，20 X Optical

View angle：61.4-2.9

Video bit rate：32 Kbps~12Mbps

Protocols：TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6

Communication Interface：1 RJ45 10M/100MEthernet interface，1 RS-485

System Compatibility：ONVIF、PSIA、CGI、ISAPI
