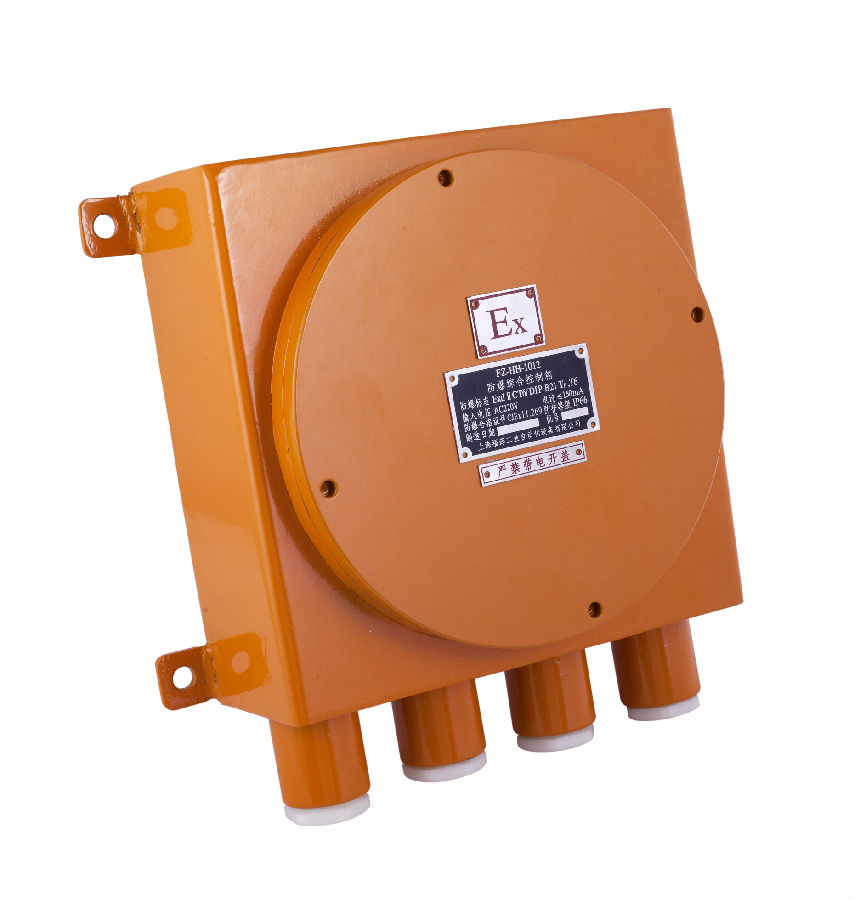

EXJX-1 as new ex-proof monitoring equipment, with advanced technique and matured quality as its base, has been a successful product in market in the area of explosive and flammable for monitoring. It can be installed in hazardous locations which belonging to ExdIICT6 and combustible dust A21 area.It is designed and manufactured according to explosion-proof standards GB3836.1-2010,GB3836.2-2010,GB12476.1-2013,GB12476.5－2013, JB/T9536-1999 , applications television equipment safety requirements GB14861-1993 and SJ2465-84.Other electrical equipment can be installed inside.

FEATURES

Be made of Carbon steel or stainless steel

Other electrical equipment can be installed inside

4 cable outlets for connection

Protection grade: IP68

Indoor and outdoor installation for all-weather use.

CERTIFICATE

Ex-marking : ExdⅡCT6 / Ex tD A21 IP68 T85℃

ELECTRICAL

Input voltage :AC220V

Voltage range:±10%

Current: ＜1A

MECHANICAL

Material :Carbon steel、Stainless steel 304 or 316L

Protection grade: IP68

Anti corrosion grade:WF2

Out size:450(L) x 450(W) x 150(H) mm

Inner size:430(L) x 430(W) x 140(H) mm

Unit weight :18Kg

Ship weight :19Kg

Outlet qty :4

Outlet size :G-1/2”

Installation :Wall mount / Base / Bracket

ENVIRONMENTAL

Air pressure: 86～106KPa

Temperature -:40℃~+60℃

Humidity: 95%RH(+25℃)
